Well completion equipment

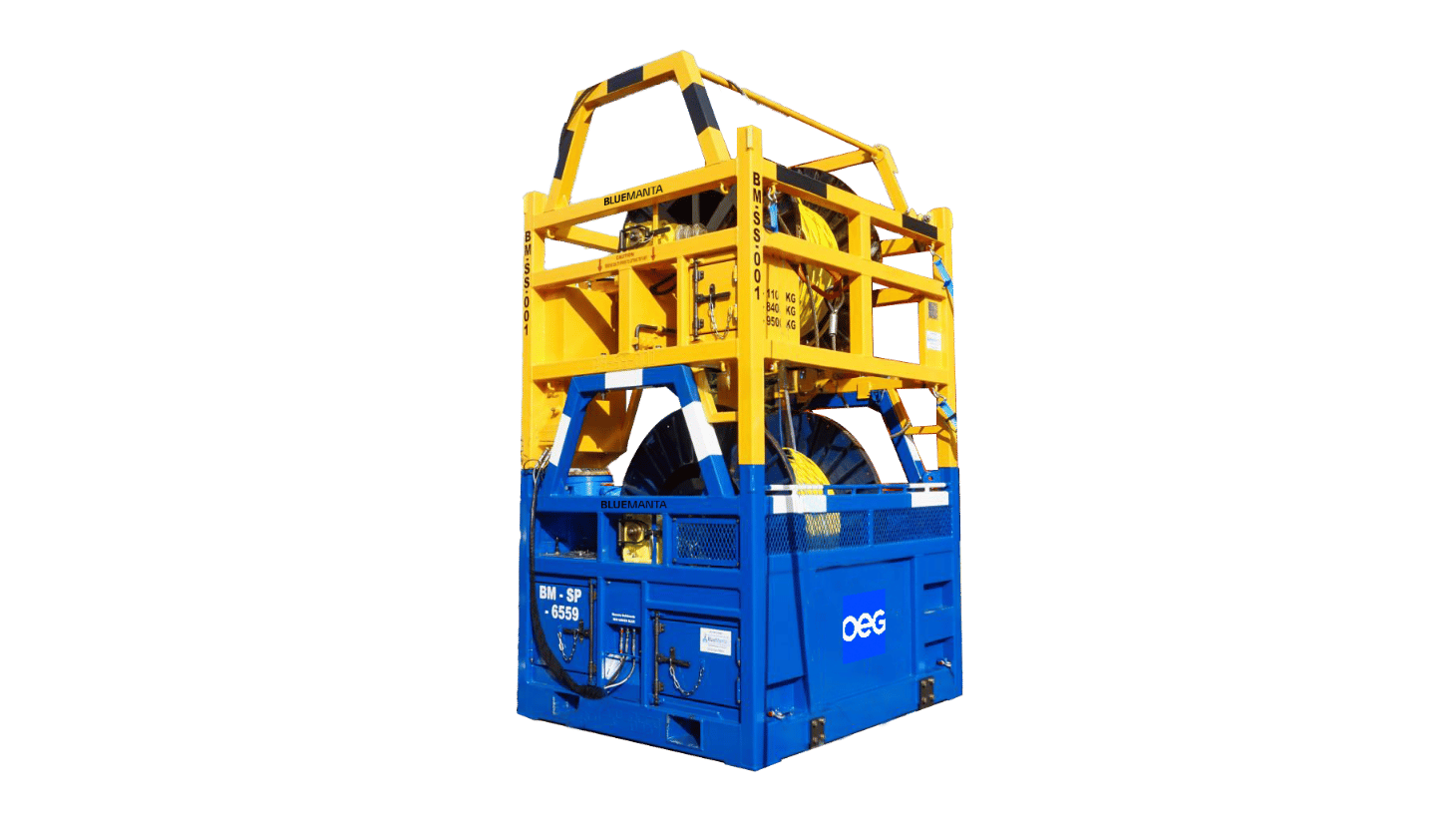

Stacking spooling unit

OEG’s DNV‑certified Well completion (BlueManta) stacking spooling units are engineered for precise, controlled deployment of control lines into wells. Built for demanding offshore conditions, they comply with DNV 2.7‑1, EN 12079, and PUWER requirements, with full guarding for safe operation.

Available for rental, these units apply consistent back tension to keep control lines tight and prevent free‑running during spooling. Their rugged, offshore‑ready construction supports safe and efficient work across well completions, interventions, workovers, and decommissioning.

Certifications

DNV 2.7-1 and EN12079

Key Features

Stacked units allows for two spools to run at once
Hand held or remote control panel
Quick release shaft

Available units

Can't find what you are looking for? Get in touch.

Type	External dimensions (LxWxH) (mm)	Drum diameter (in)	Drum width (in)	Drum shaft (in)	Tare weight (kg)	SWL (kg)	Max gross weight (kg)
Type: 65" Stacking unit (02-SS-6500)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 65"	Drum width (in) 48"	Drum shaft (in) 3"	Tare weight 1,100	SWL 8,400	Max gross weight 9,500

E & OE - All dimensions and weights are accurate at the time of creation. Please check exact specifications of units when ordering.

OEG's BlueManta fleet certification

Looking for certification documentation for our Well completions (BlueManta) fleet? Follow the link below to access the relevant information quickly and conveniently.

BlueManta certification search

Request a quote

For all equipment rental pricing details, related services or for questions about custom fabrication, please reach out to our team.
