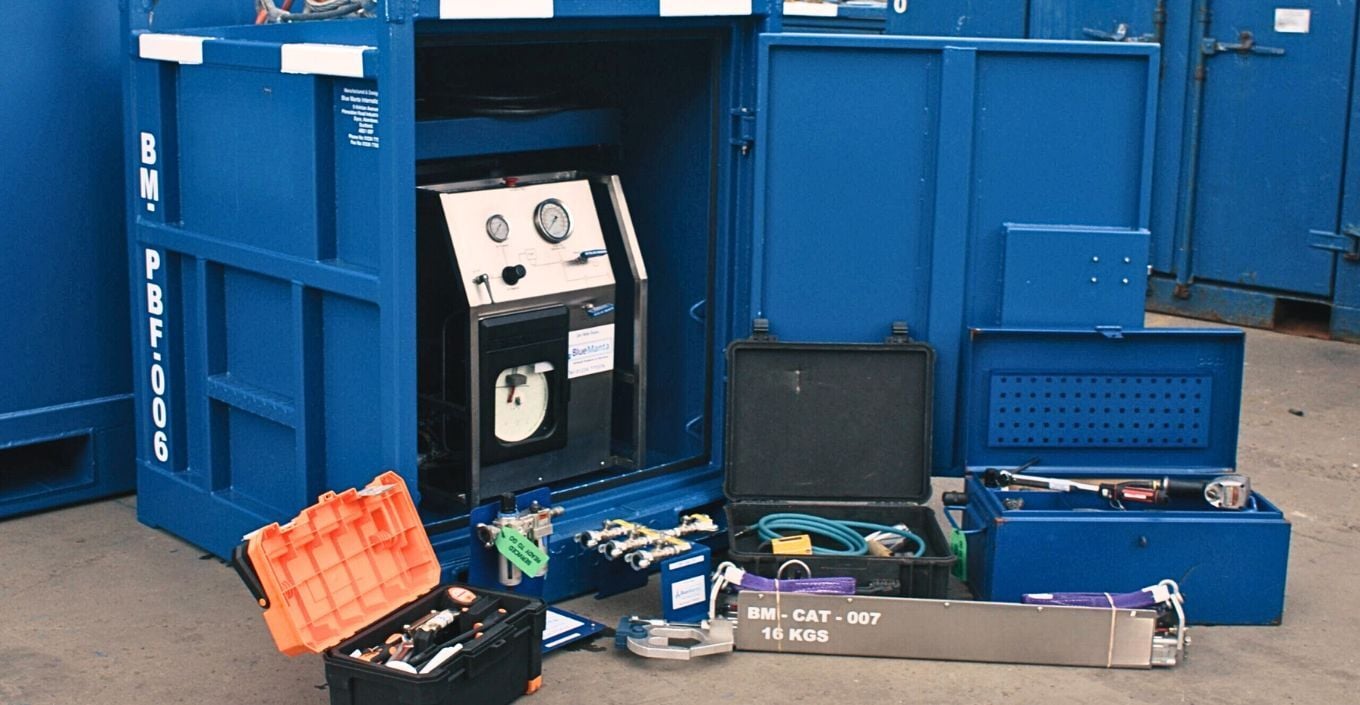

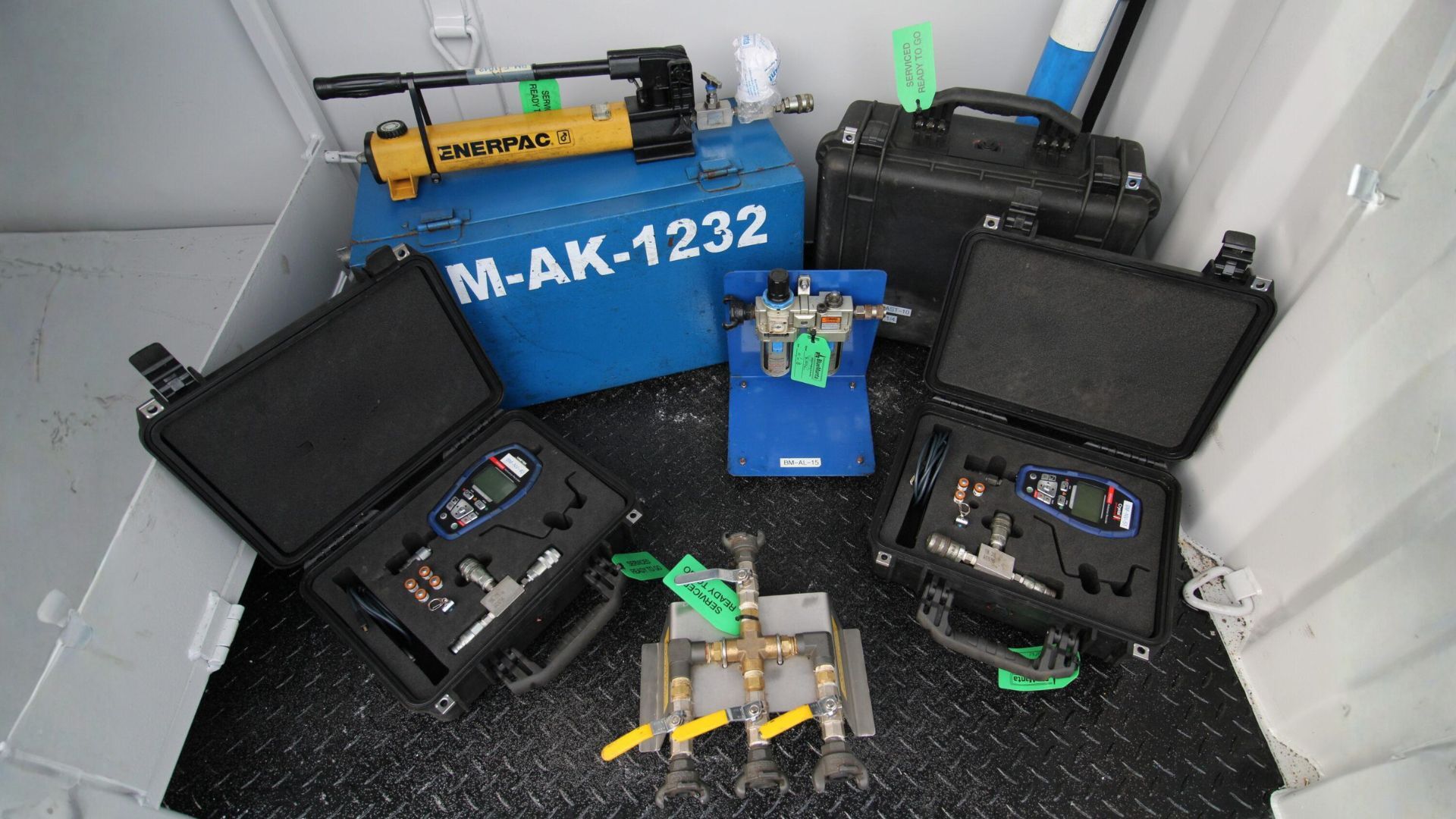

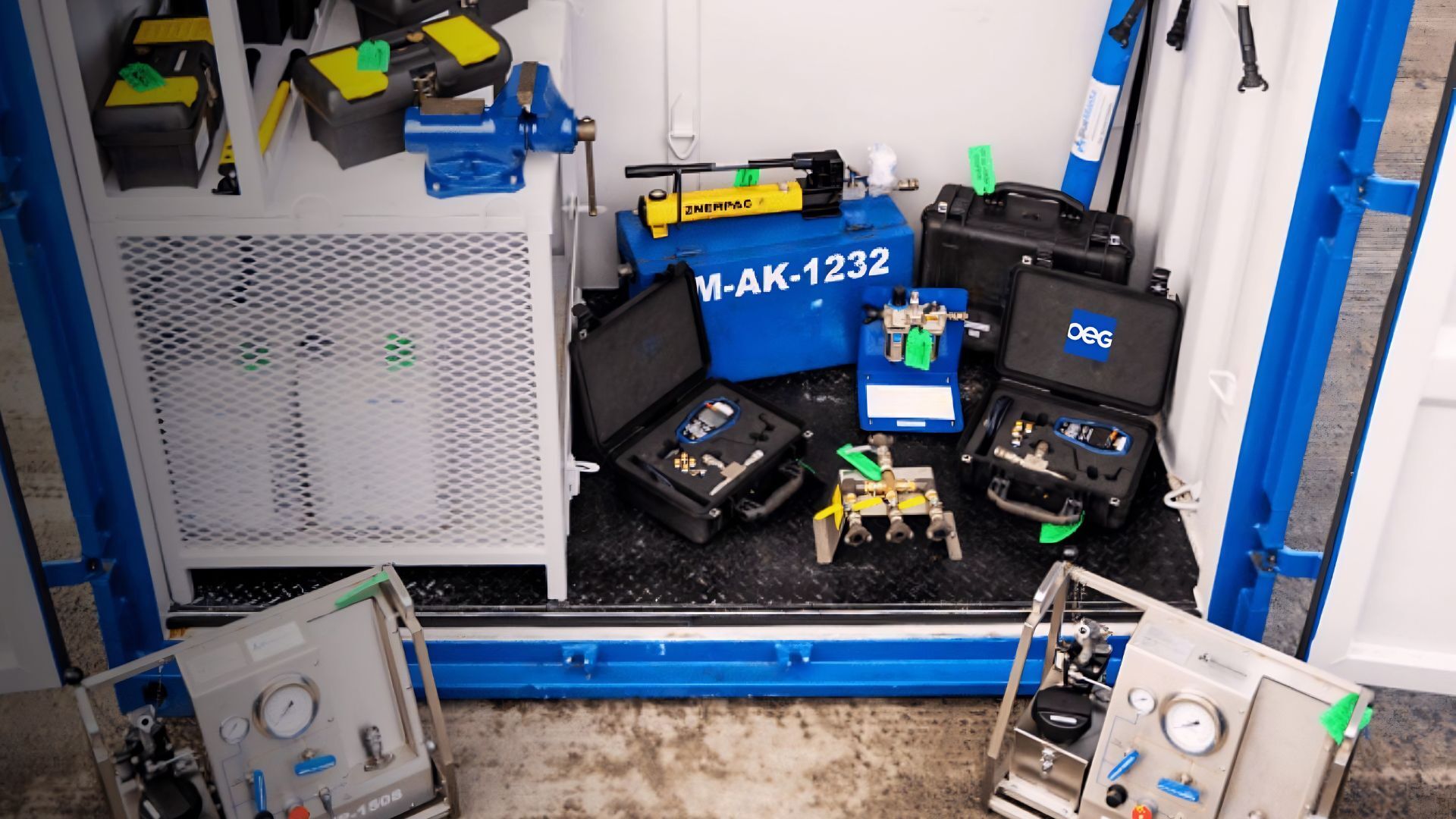

Completion load outs

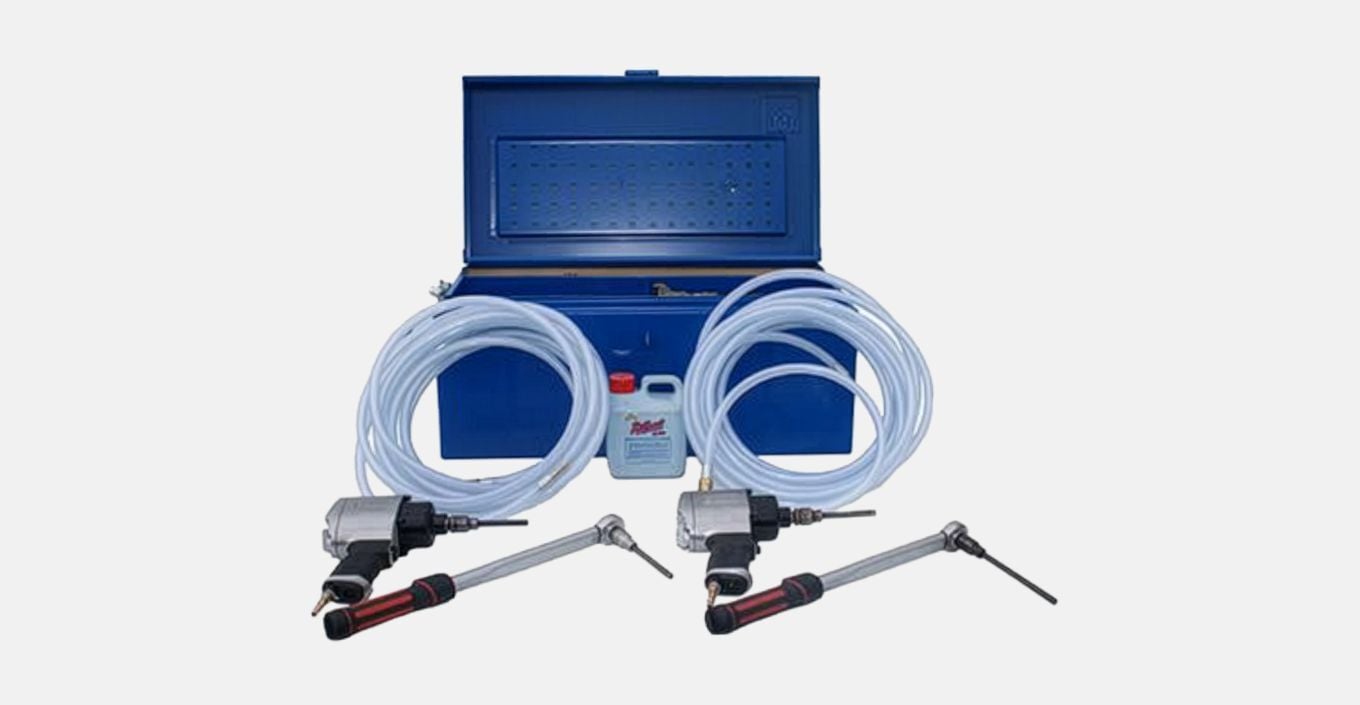

OEG’s BlueManta air-operated installation kits are engineered for efficient make-up and torquing of all sizes of control line clamps. Each kit includes calibrated torque wrenches to help ensure accurate torque application. Installation kits can also be configured to meet specific customer requirements.

A typical Control Line Clamp Installation Kit includes:

• 2 x Impact wrench guns with 20 ft air hoses and quick-release connectors
• 2 x Torque wrenches
• 2 x 11 mm hex sockets
• 2 x 8 mm hex bits
• 2 x 10 mm hex bits
• 2 x Crows Foot or McDonald crossovers
• T-bars
• Pneumatic regulator and filter assembly
• Quick-release connector and McDonald’s connector

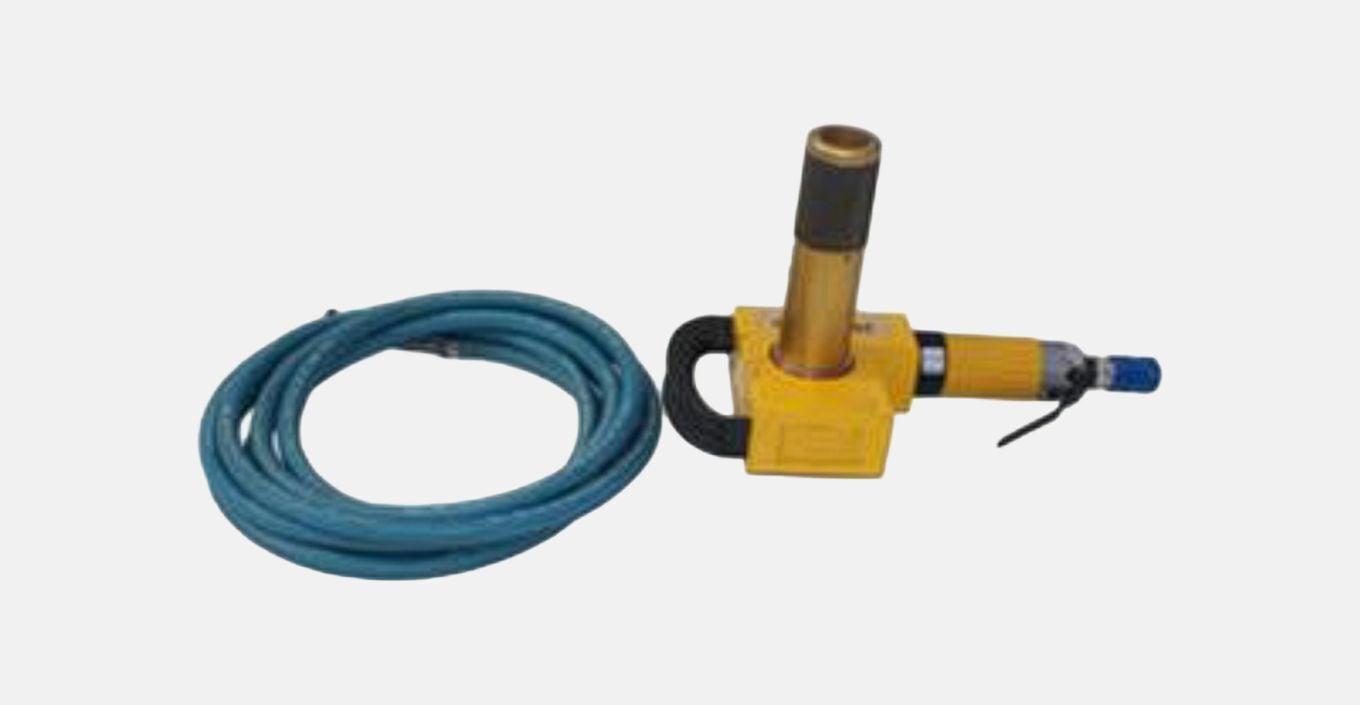

OEG’s Bluemanta air operated strippers are capable of stripping long lengths of encapsulation from single lines quickly, simply and safely. Hand held strippers are also available for stripping 11mm x 11mm encapsulation on ¼” tube or 15mm x 15mm on 3/8” tube.

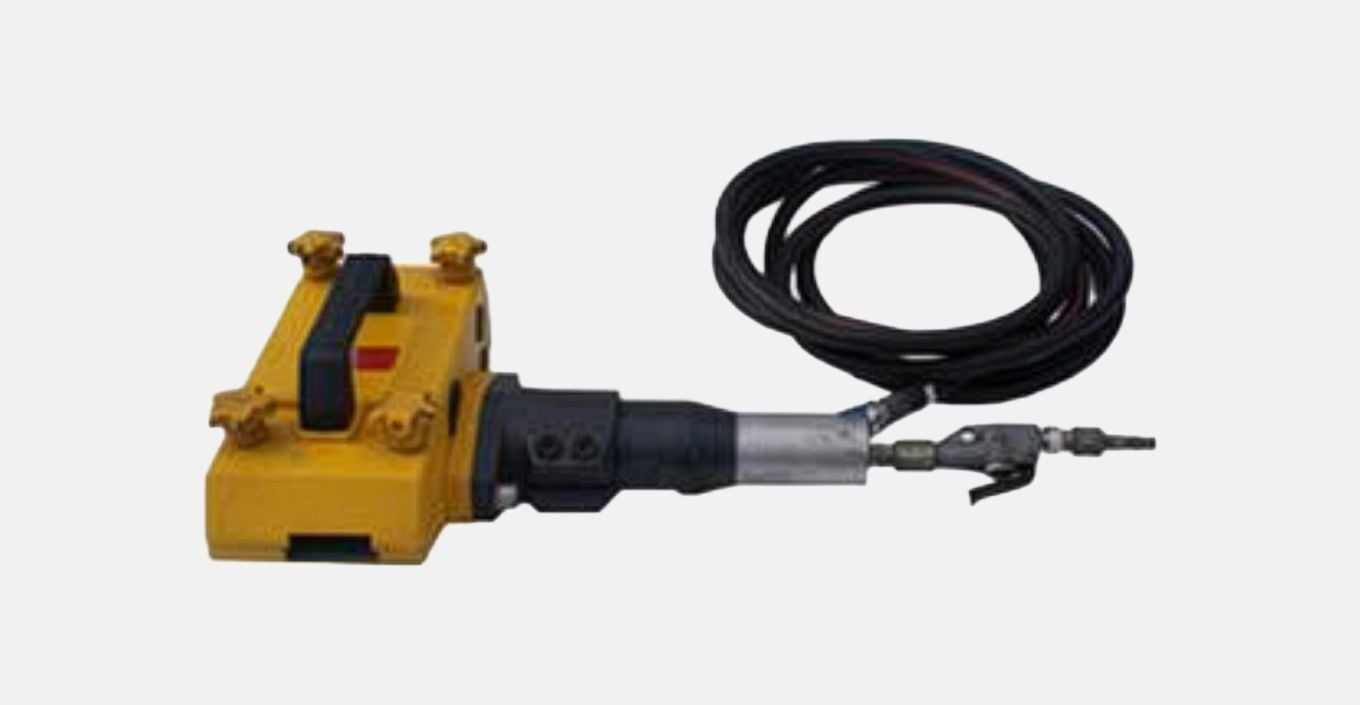

OEG’s BlueManta air operated splitters are a simple and flexible tool that operates by pulling the flatpack safely through a cutting mechanism to split the encapsulation.

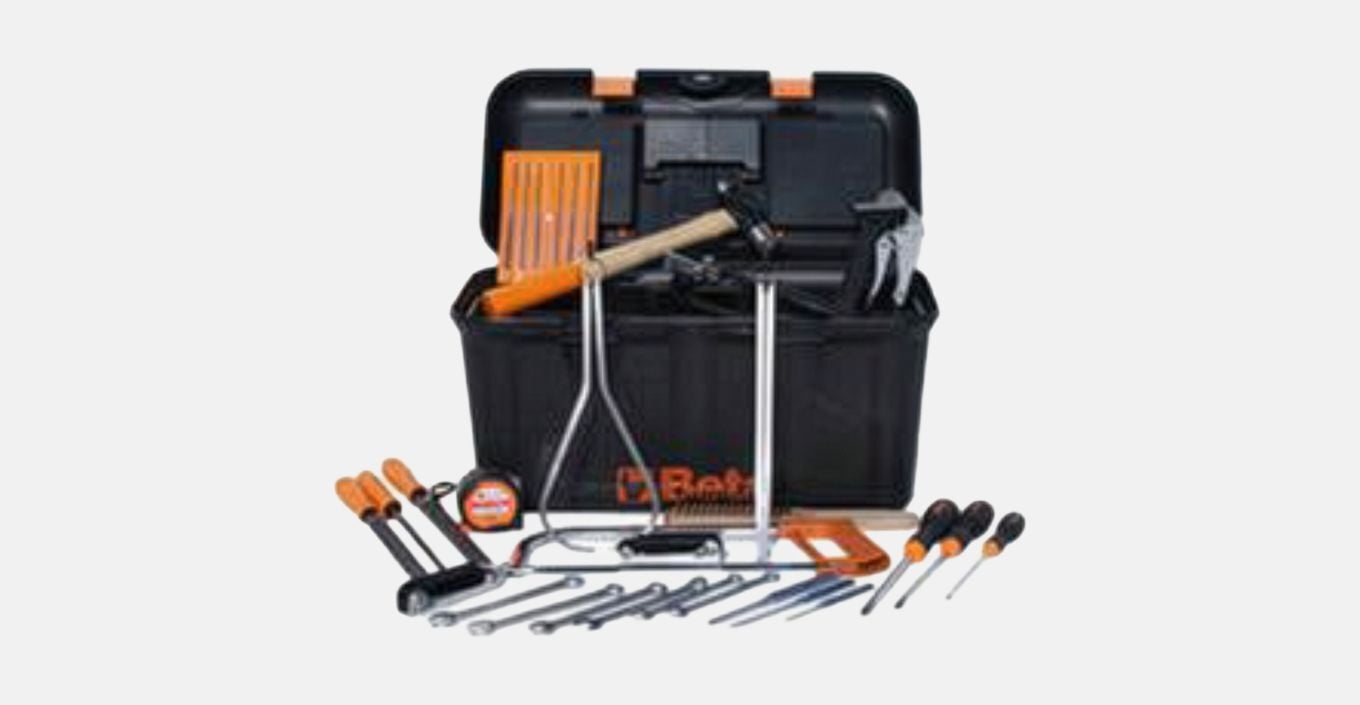

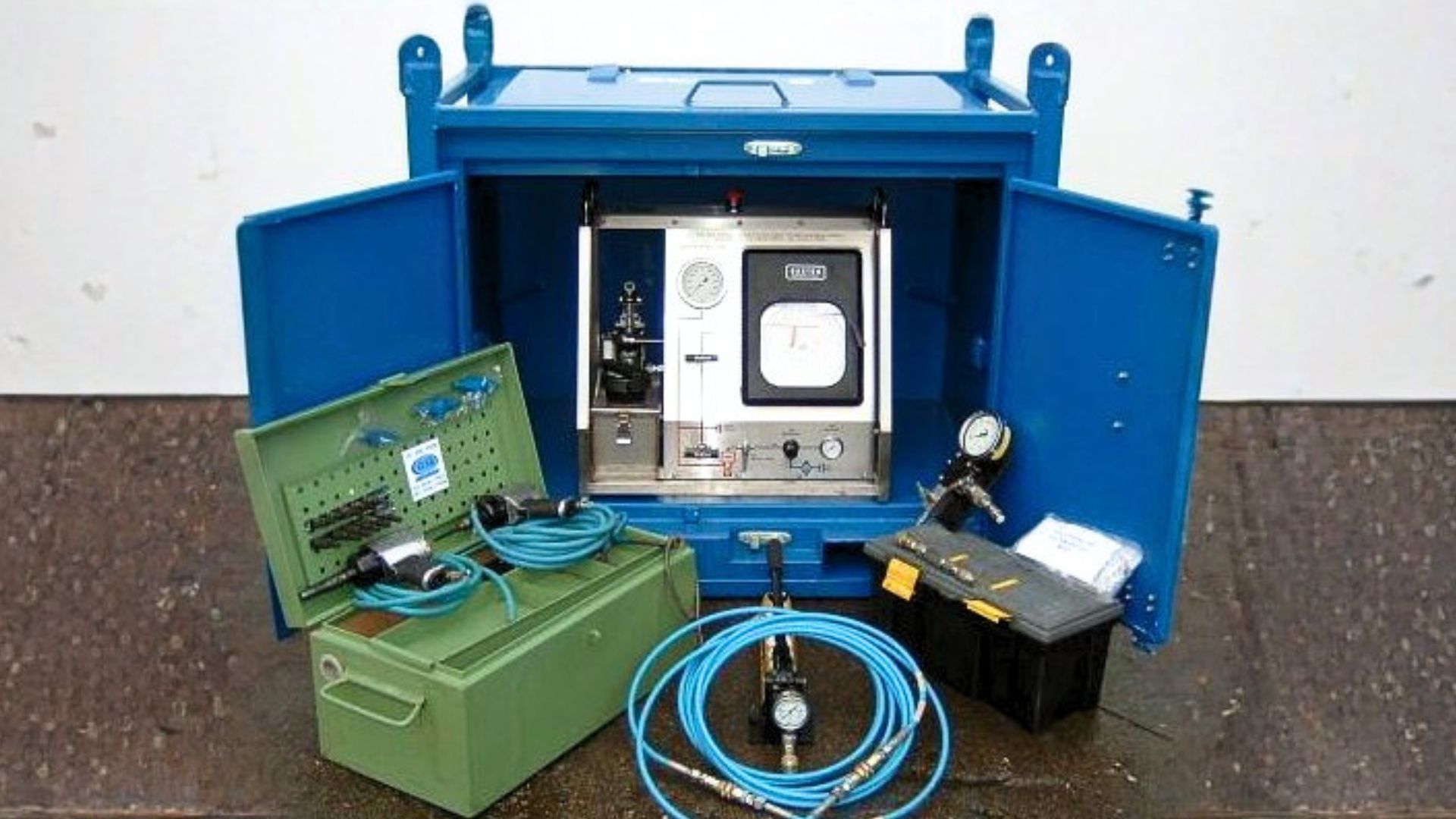

Hand tool boxes are designed to complement OEG’s BlueManta completion installation kits. They can be used offshore by the operator for tasks such as the preparation of the control line and assembly of fittings.

A typical kit contains the following key items:

• Cutting tools, including hacksaw, spare blades and control line cutter
• Spanners, Allen keys and screwdrivers
• Measuring tools, including calipers and metric tape measure
• Pipe benders, punches, files and wire brush
• NAS 6 filter assembly c/w spare filters
• Encapsulated stripper c/w spare blade

Additional items are available at the customer’s request.

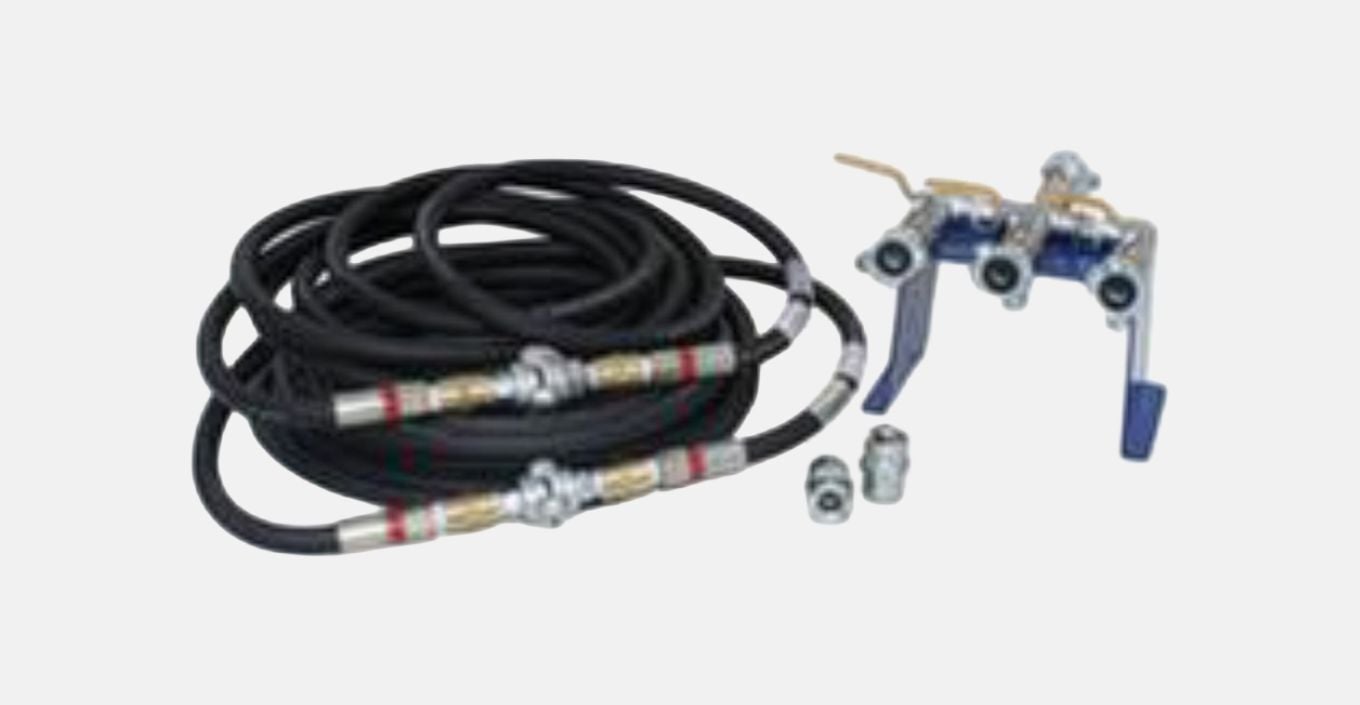

OEG’s BlueManta air manifolds have one air inlet and three air outlet lines and come with 1 × 50ft hose and 3 × 30ft hoses. The hoses can be supplied with either Crows Foot or McDonald’s connections. The Manifold has four isolation valves – one for the inlet valve and one for each of the outlet valves – all complete with safety pins and whip checks.

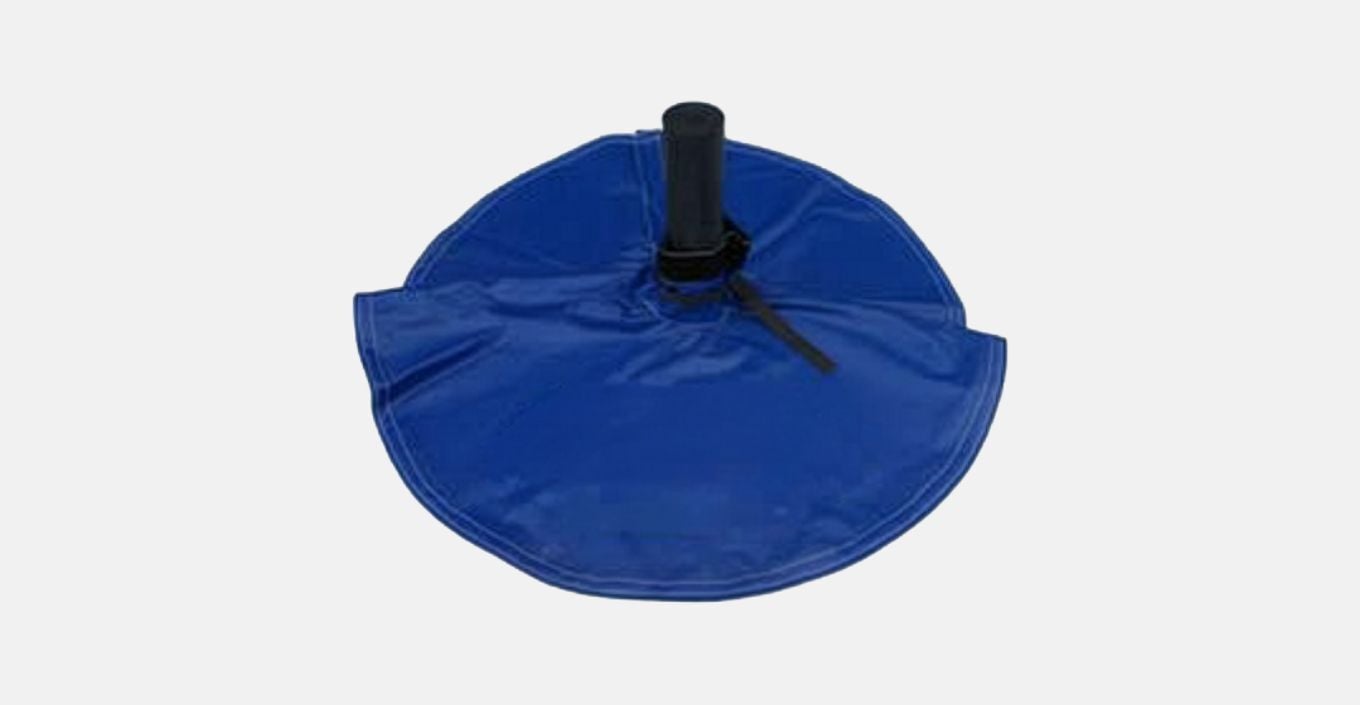

OEG’s BlueManta tubing and casing covers are ideal for eliminating the danger of losing small tools and fittings down the Well while carrying out intricate work during an installation. By covering the Well hole, the covers can catch any dropped items and prevent problems arising.

Two types are available:

• Blue – 3 ½” to 7”
• Red – 5 ½” to 9 5/8”
