Well completion equipment

Sheave wheels

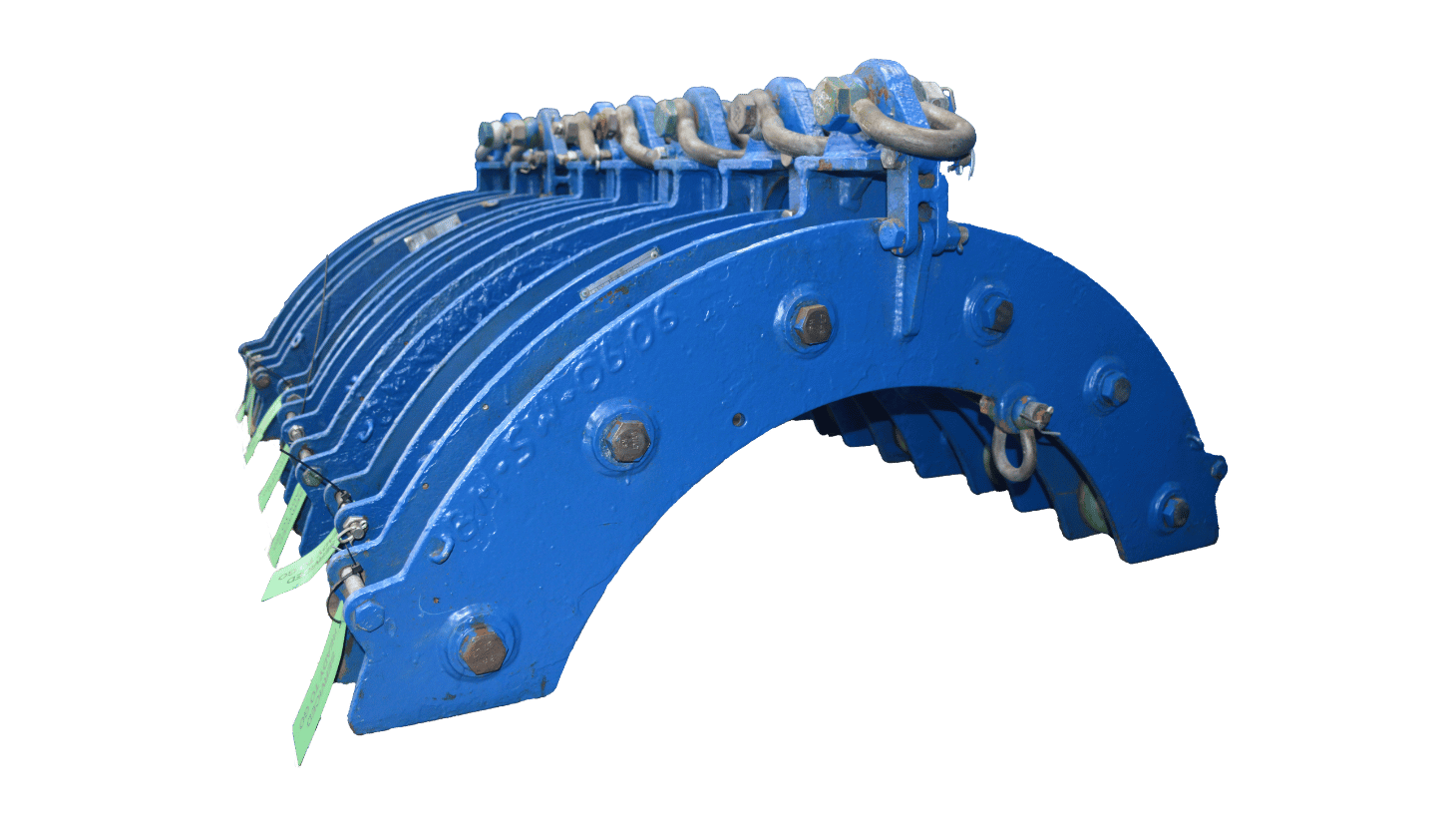

OEG’s DNV‑certified Well completion (BlueManta) sheave wheels safely guide control lines and hoses from the spooling unit into the well. Built for demanding offshore environments, they are tested in accordance with DNV 2.22 and Lloyd’s Code for Lifting Appliances in a Marine Environment (CLAME).

Available for rental in single, dual, and triple line horseshoe configurations, these robust sheave wheels support safe, efficient control line deployment across well completions, interventions, workovers and decommissioning. Rollers can be manufactured to suit various control line or hose sizes, with each unit supplied with keeper wheels, gate access, swivels, safety lines and a safety shackle.

Certifications

DNV 2.22 and Lloyd's (CLAME)

Key Features

Single-pin opening to allow easy cable installation and removal
Front and rear guide pins for easy access
Safety line facility
Teflon rollers can be manufactured to suit client-specific requirements

Supplied complete with: pin safety cables and shackle.
Customer to supply safety wire rope sling.

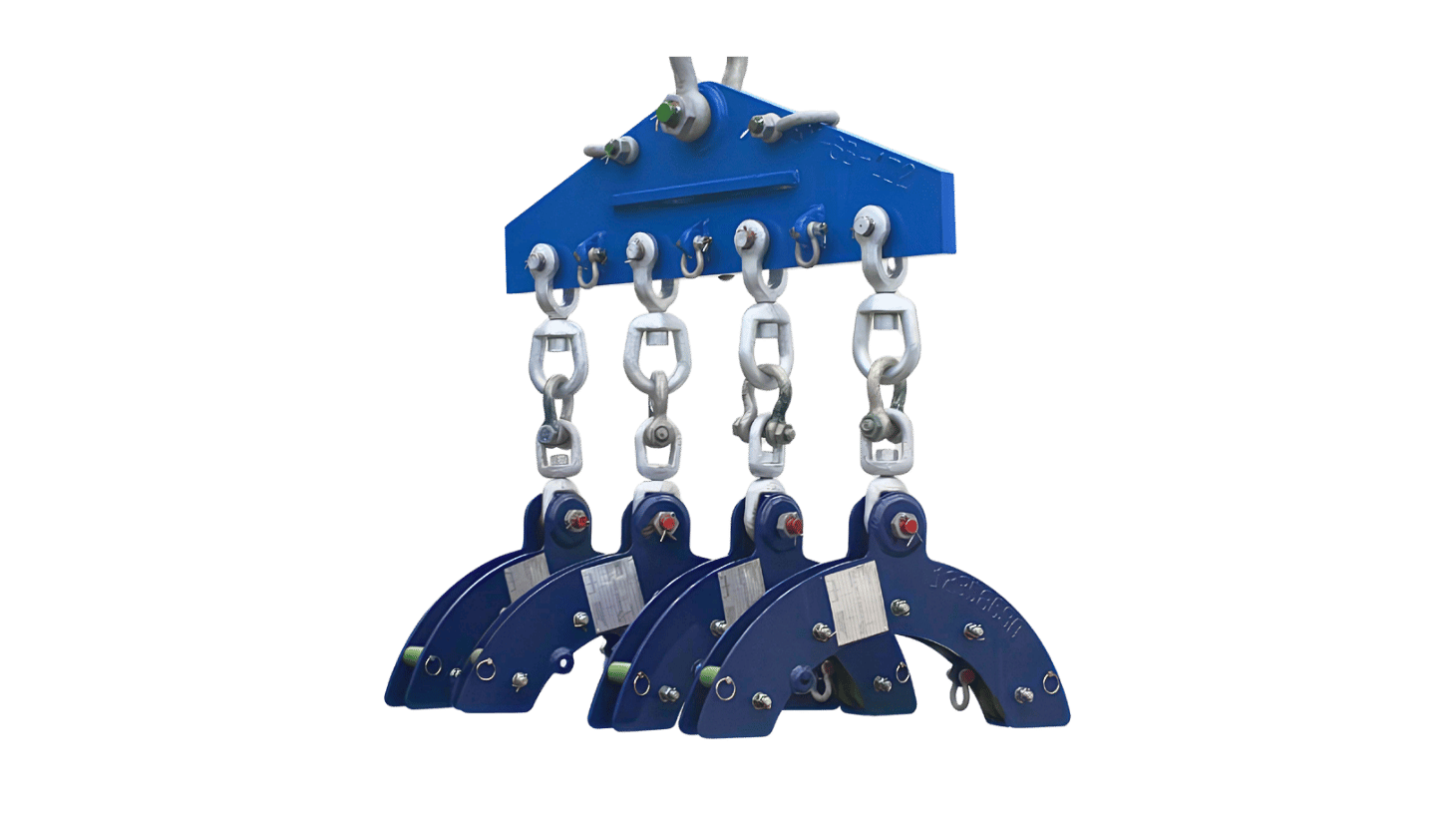

2T 4T sheave wheel

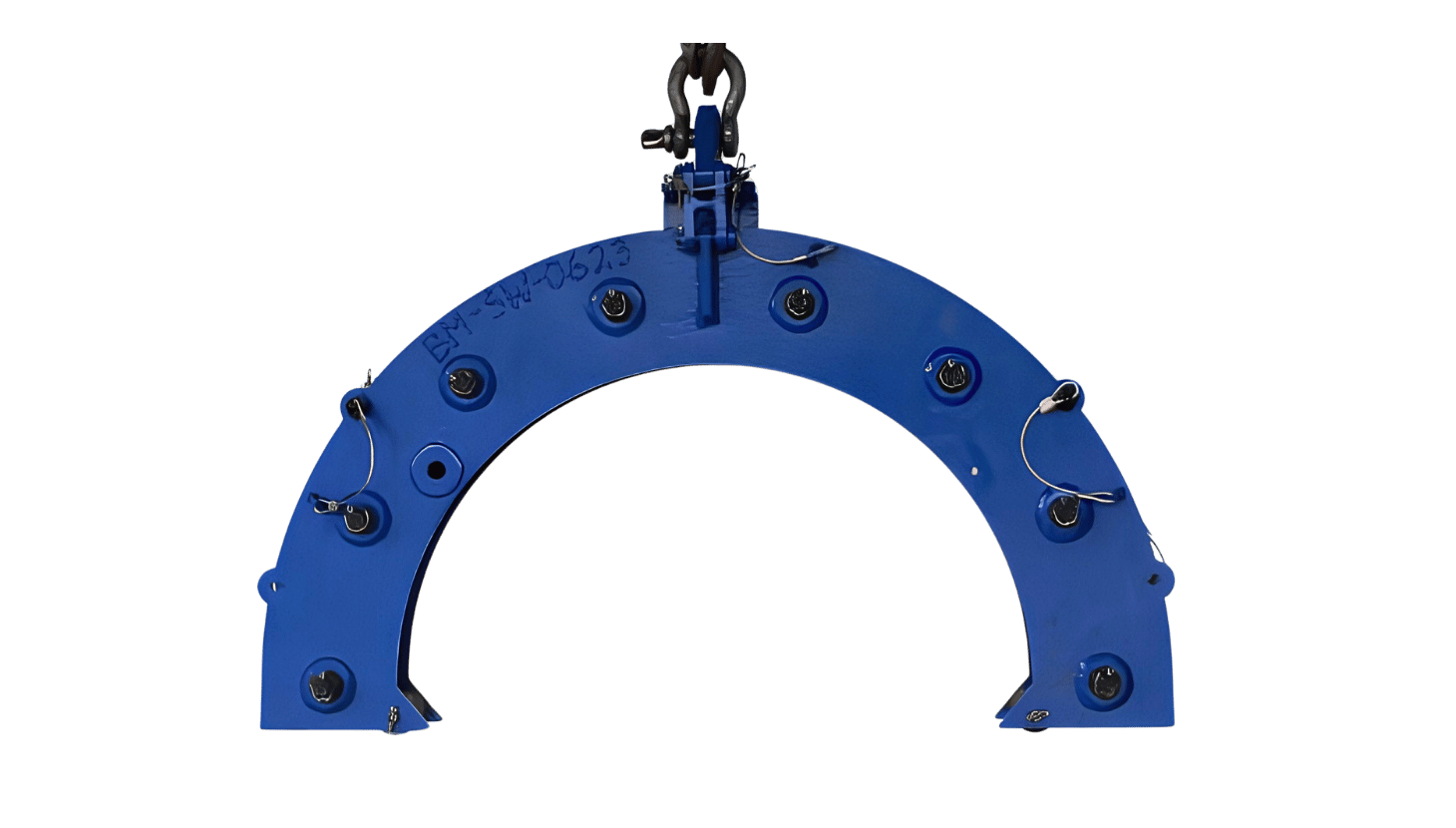

3T 6T sheave wheel

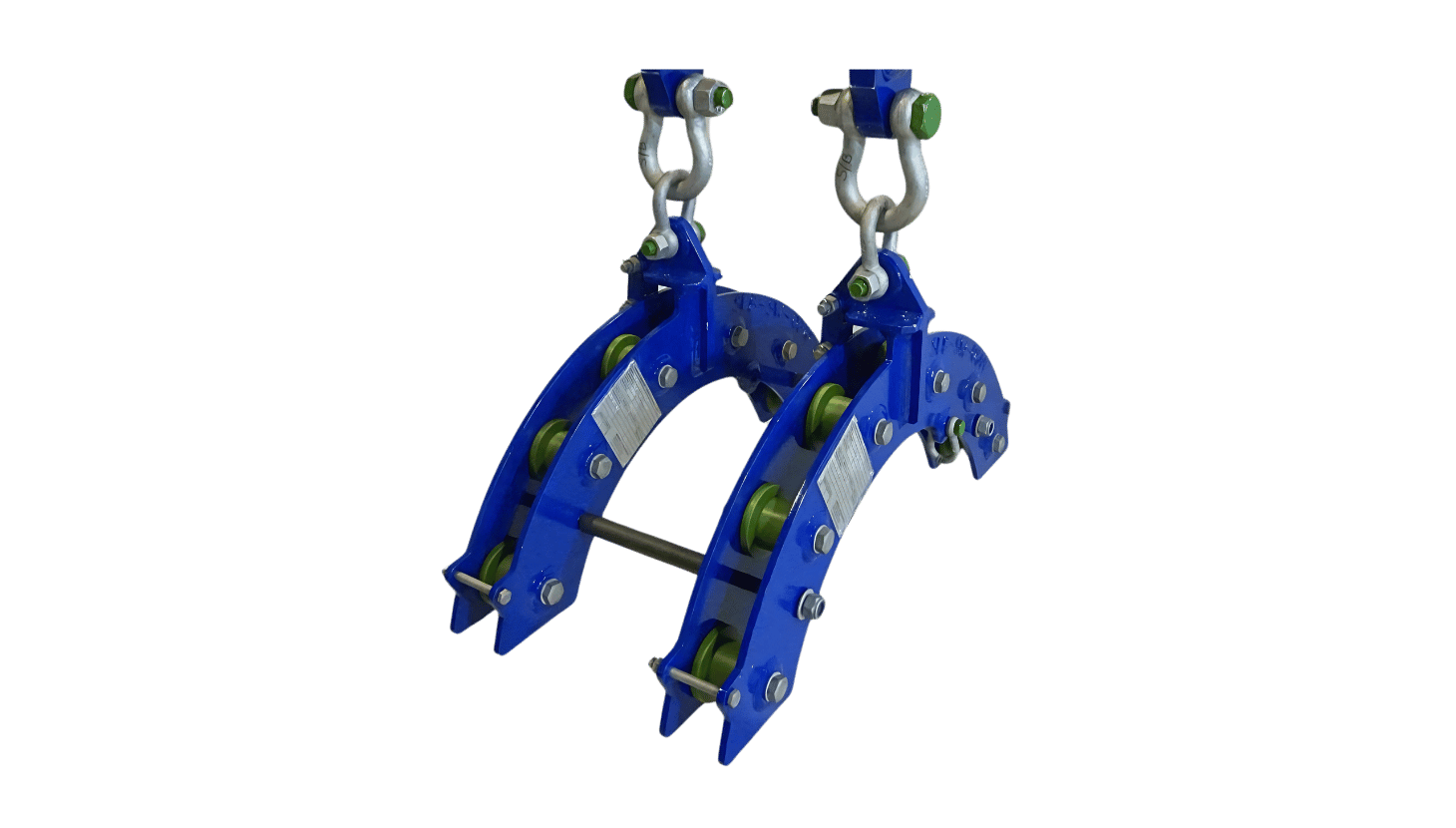

6T 12T sheave wheel

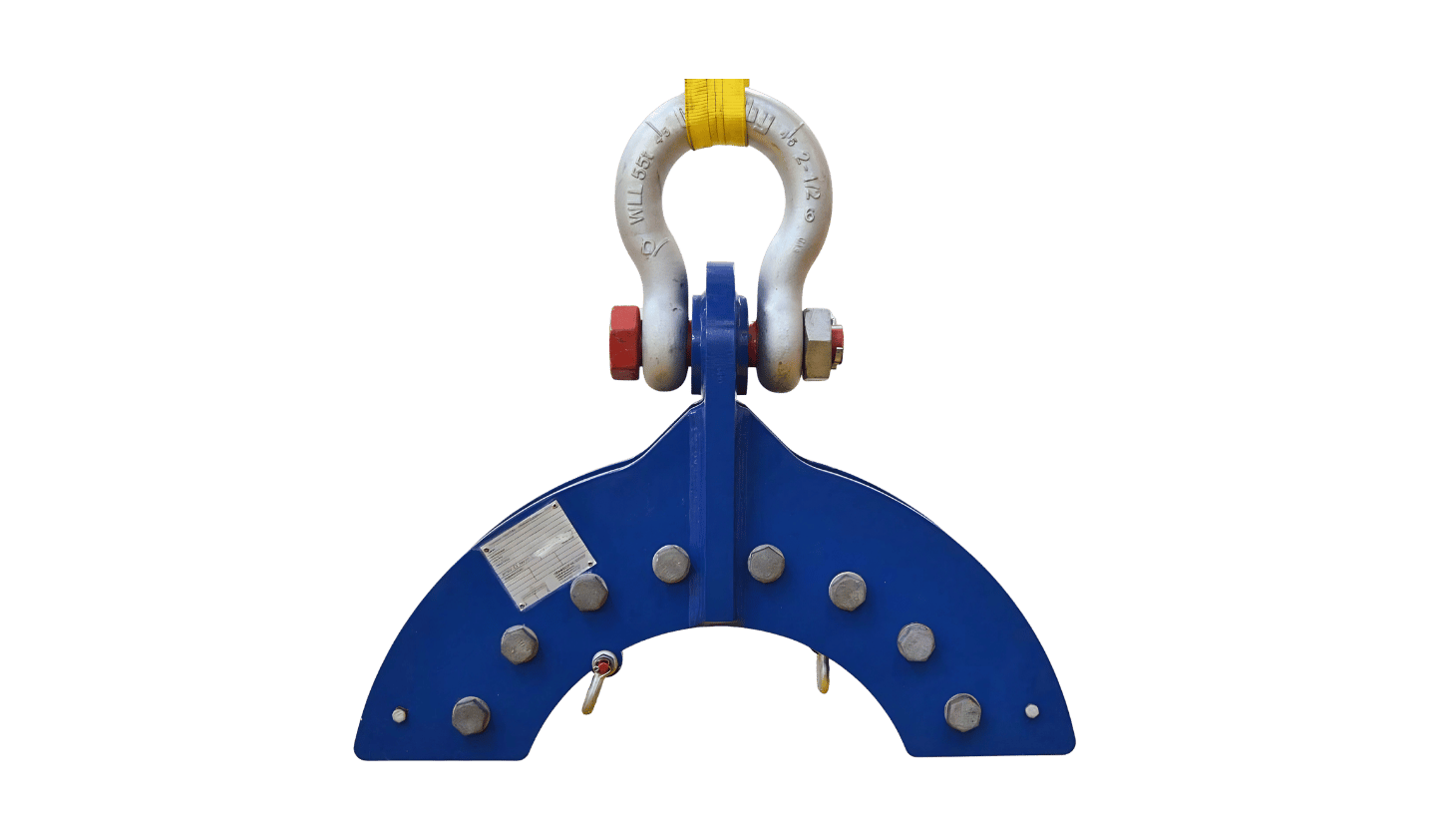

2T 4T sheave wheel

Available sheave wheels

Can't find what you are looking for? Get in touch.

Type	Model no.	Maximum line pull (kg)	Maximum head fitting (kg)	Gate access	Swivel
Type: 2T 4T sheave wheel	Model no. 03-0204	Maximum line pull 2,000	Maximum head fitting 4,000	Gate access No	Swivel Yes
Type: 2T 8T dual sheave wheel	Model no. 03-0306	Maximum line pull 3,000	Maximum head fitting 6,000	Gate access Yes	Swivel Optional extra
Type: 3T 6T sheave wheel	Model no. 03-0208.2	Maximum line pull 4,000	Maximum head fitting 8,000	Gate access Yes	Swivel Optional extra
Type: 3T 6T sheave wheel	Model no. 03-0306	Maximum line pull 3,000	Maximum head fitting 6,000	Gate access Yes	Swivel Optional extra
Type: 4T 8T sheave wheel	Model no. 03-0408	Maximum line pull 4,000	Maximum head fitting 8,000	Gate access Yes	Swivel Optional extra
Type: 5T 10T sheave wheel	Model no. 03-0510	Maximum line pull 5,000	Maximum head fitting 10,000	Gate access Yes	Swivel Optional extra
Type: 5T 10T sheave wheel (SWX)	Model no. 03-0510-SWX	Maximum line pull 5,000	Maximum head fitting 10,000	Gate access Yes	Swivel Optional extra
Type: 5T 10T sheave wheel (EXT)	Model no. 03-0510-EXT	Maximum line pull 5,000	Maximum head fitting 10,000	Gate access Yes	Swivel Optional extra
Type: 6T 12T sheave wheel	Model no. 03-0612	Maximum line pull 6,000	Maximum head fitting 12,000	Gate access Yes	Swivel Optional extra
Type: 8T 16T sheave wheel	Model no. 03-0816	Maximum line pull 8,000	Maximum head fitting 16,000	Gate access Yes	Swivel Optional extra
Type: 10T 20T sheave wheel	Model no. 03-1020	Maximum line pull 10,000	Maximum head fitting 20,000	Gate access Yes	Swivel No
Type: 10T 20T sheave wheel (EXT)	Model no. 03-1020-EXT	Maximum line pull 10,000	Maximum head fitting 20,000	Gate access Yes	Swivel Optional extra

E & OE - All dimensions and weights are accurate at the time of creation. Please check exact specifications of units when ordering.

OEG's BlueManta fleet certification

Looking for certification documentation for our Well completions (BlueManta) fleet? Follow the link below to access the relevant information quickly and conveniently.

BlueManta certification search

Request a quote

For all equipment rental pricing details, related services or for questions about custom fabrication, please reach out to our team.
