Well completion equipment

Spooling units

OEG’s DNV‑certified Well completion (BlueManta) pneumatic spooling units are purpose‑built for running control lines into wells with accuracy and control. Designed for harsh offshore environments, they meet DNV 2.7‑1, EN 12079, and PUWER requirements.

Available for rental, these robust units apply controlled back tension to keep control lines tight and prevent the spool from free‑running during deployment. Their durable offshore‑ready design supports safe, efficient operations across well completions, interventions, workovers and decommissioning.

Certifications

DNV 2.7-1 and EN12079

Key Features

Various standard and bespoke designs available
Hand held or remote control panel
Quick release shaft
Forklift pockets
Air-driven motor for back tension
Ergonomic controls
Quick-release shaft system
Spool straight lift when loading/unloading
Forklift pockets

Optional features

Hydraulic rotary and electric slip ring

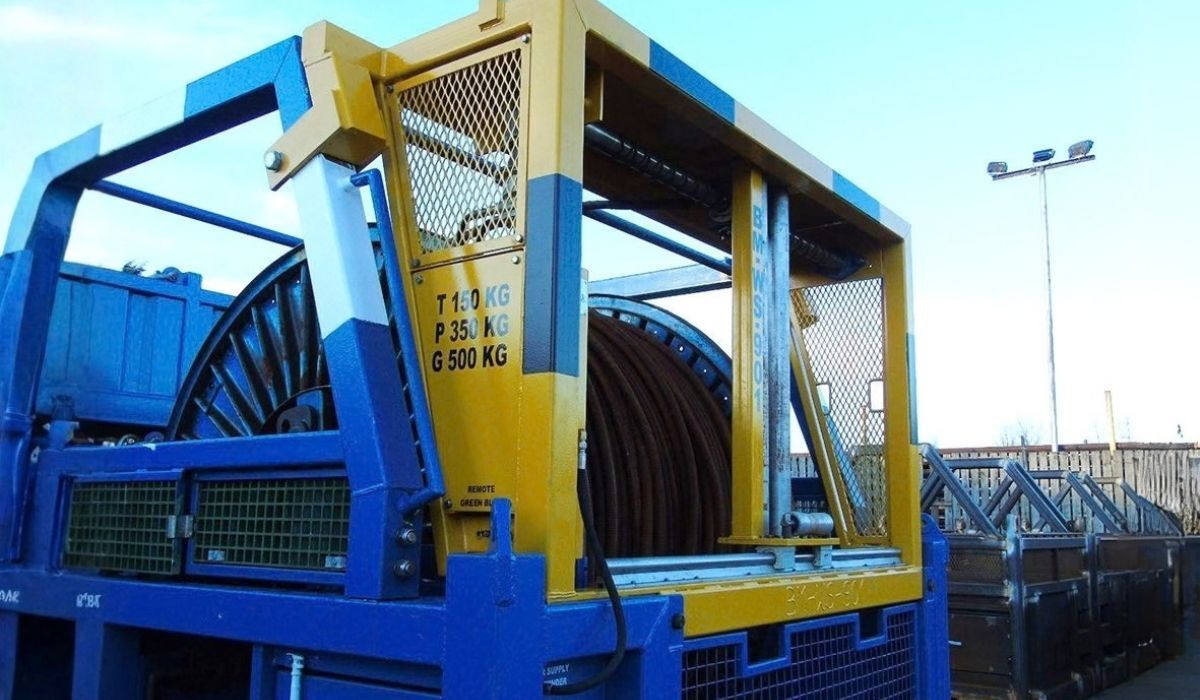

Mechanically driven winder system for neat spooling of line
Hydraulic rotary and electric slip ring
Pneumatic-driven winder system for neat spooling of line
Air Pig control panel systems for single user to operate 4–6 spoolers safely

40" Spooling unit

50" Spooling unit

65" Spooling unit

96" Spooling unit

Available spooling units

Can't find what you are looking for? Get in touch.

Type	External dimensions (LxWxH) (mm)	Drum diameter (in)	Drum width (in)	Drum shaft (in)	Tare weight (kg)	SWL (kg)	Max gross weight (kg)
Type: 30" Spooling unit (02-3000)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 32"	Drum width (in) 18"	Drum shaft (in) 3"	Tare weight 600	SWL 900	Max gross weight 1,500
Type: 36" Spooling unit (02-3600)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 36"	Drum width (in) 30"	Drum shaft (in) 3"	Tare weight 700	SWL 1,300	Max gross weight 2,000

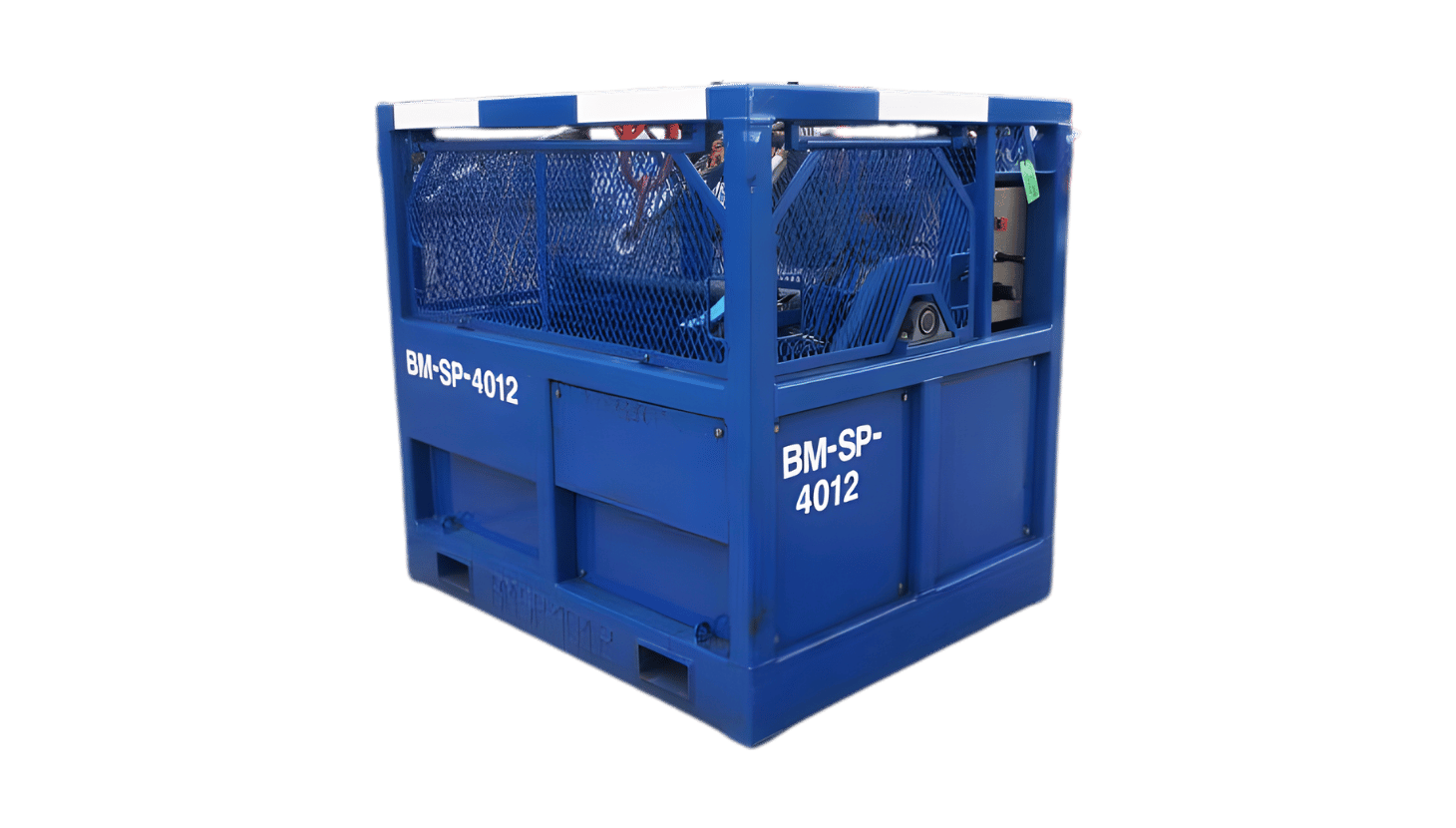

Type: 40" Spooling unit (02-4000)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 40"	Drum width (in) 36"	Drum shaft (in) 3"	Tare weight 1,000	SWL 3,500	Max gross weight 4,500

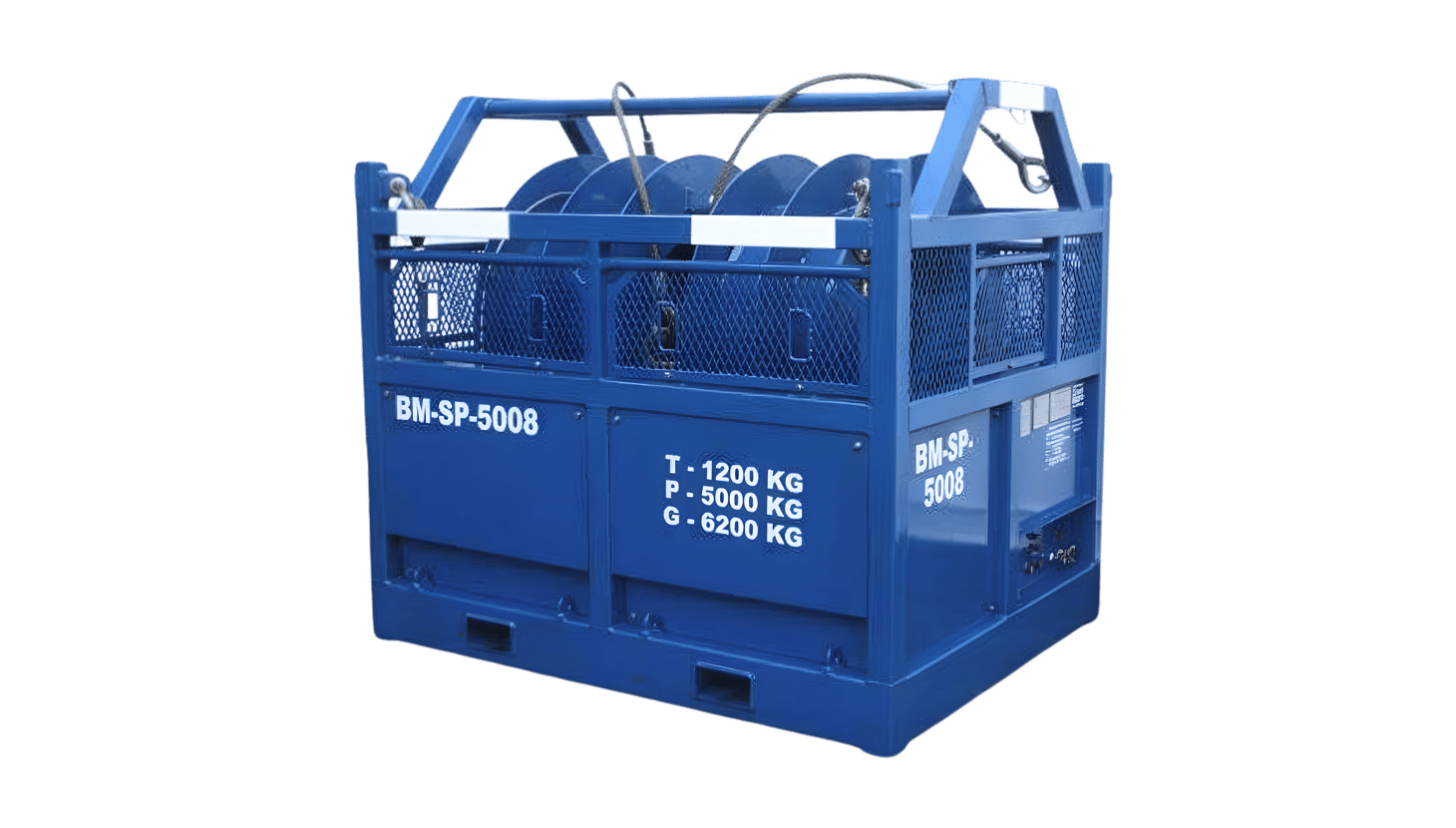

Type: 50" Spooling unit (02-5000)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 50"	Drum width (in) 48"	Drum shaft (in) 3"	Tare weight 1,200	SWL 5,000	Max gross weight 6,200
Type: 55" Spooling unit (02-5500)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 55"	Drum width (in) 48"	Drum shaft (in) 3"	Tare weight 1,300	SWL 7,200	Max gross weight 8,500

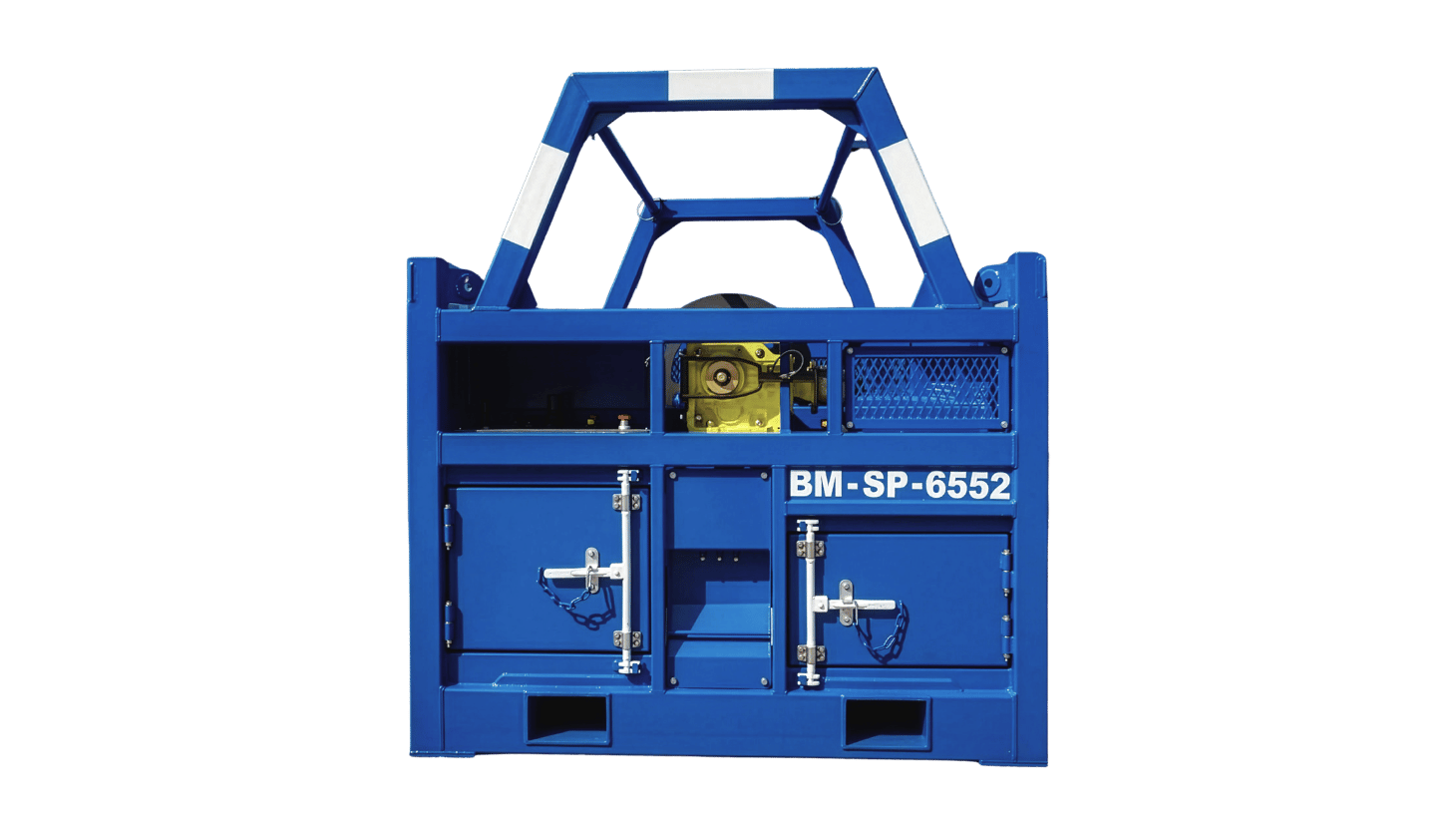

Type: 65" Spooling unit (02-6500)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 65"	Drum width (in) 48"	Drum shaft (in) 3" or 4"	Tare weight 1,600	SWL 8,400	Max gross weight 10,000
Type: 75" Spooling unit (02-7500)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 75"	Drum width (in) 57"	Drum shaft (in) 3" or 4"	Tare weight 2,000	SWL 9,000	Max gross weight 11,000
Type: 82" Spooling unit (02-85WD)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 82"	Drum width (in) 62"	Drum shaft (in) 4"	Tare weight 2,500	SWL 10,000	Max gross weight 12,500
Type: 85" Spooling unit (02-8500)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 85"	Drum width (in) 62"	Drum shaft (in) 3" or 4"	Tare weight 2,500	SWL 10,000	Max gross weight 12,500
Type: 96" Spooling unit (02-9600)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 96"	Drum width (in) 65"	Drum shaft (in) 4"	Tare weight 2,500	SWL 12,000	Max gross weight 14,500

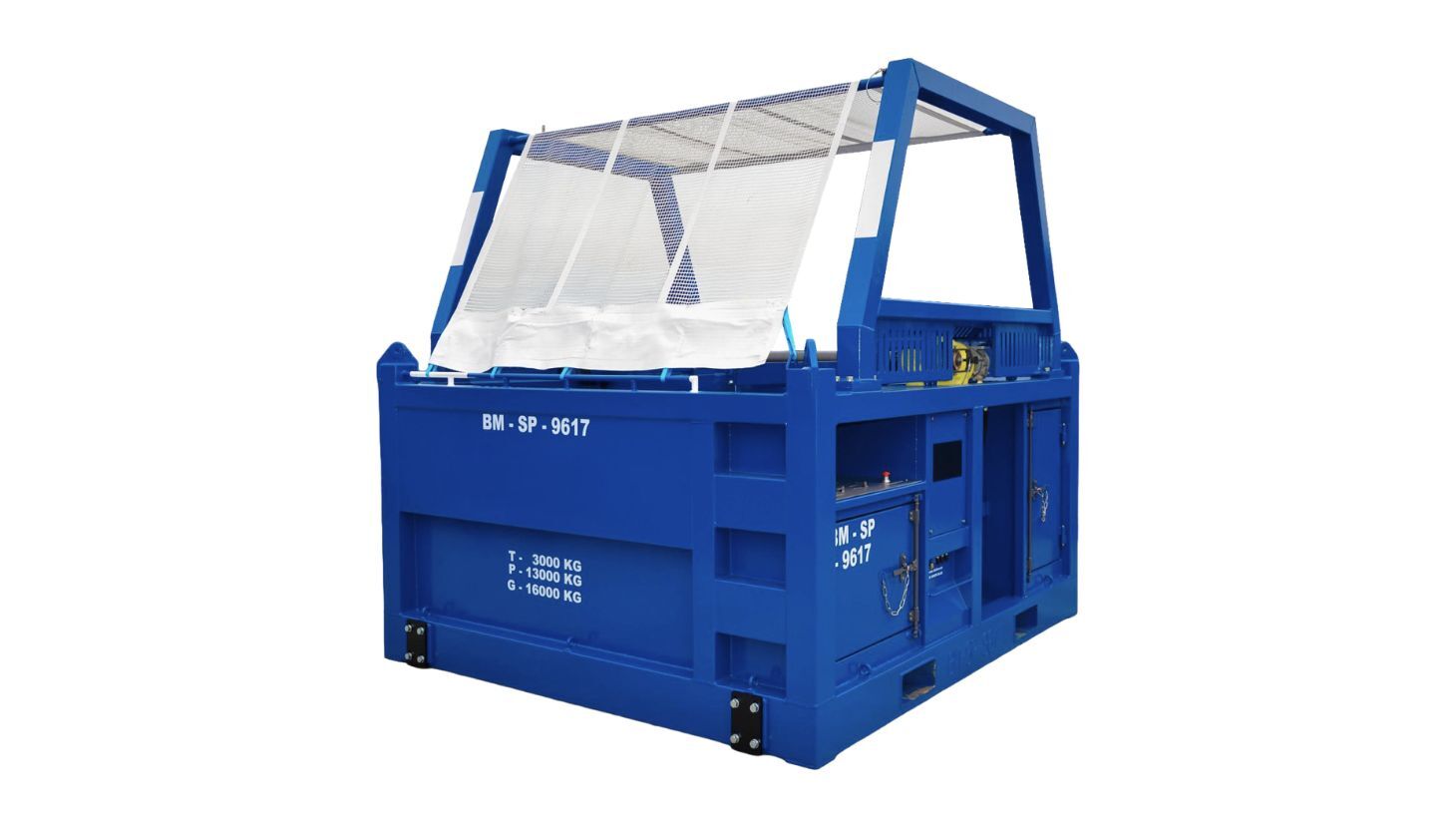

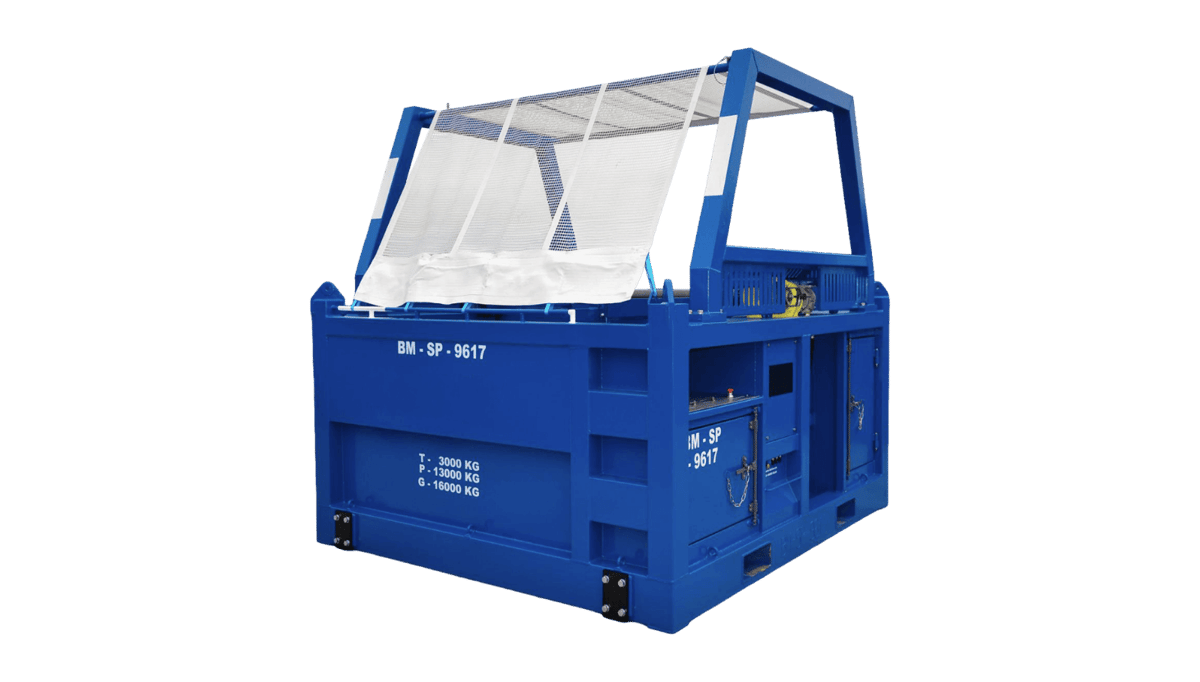

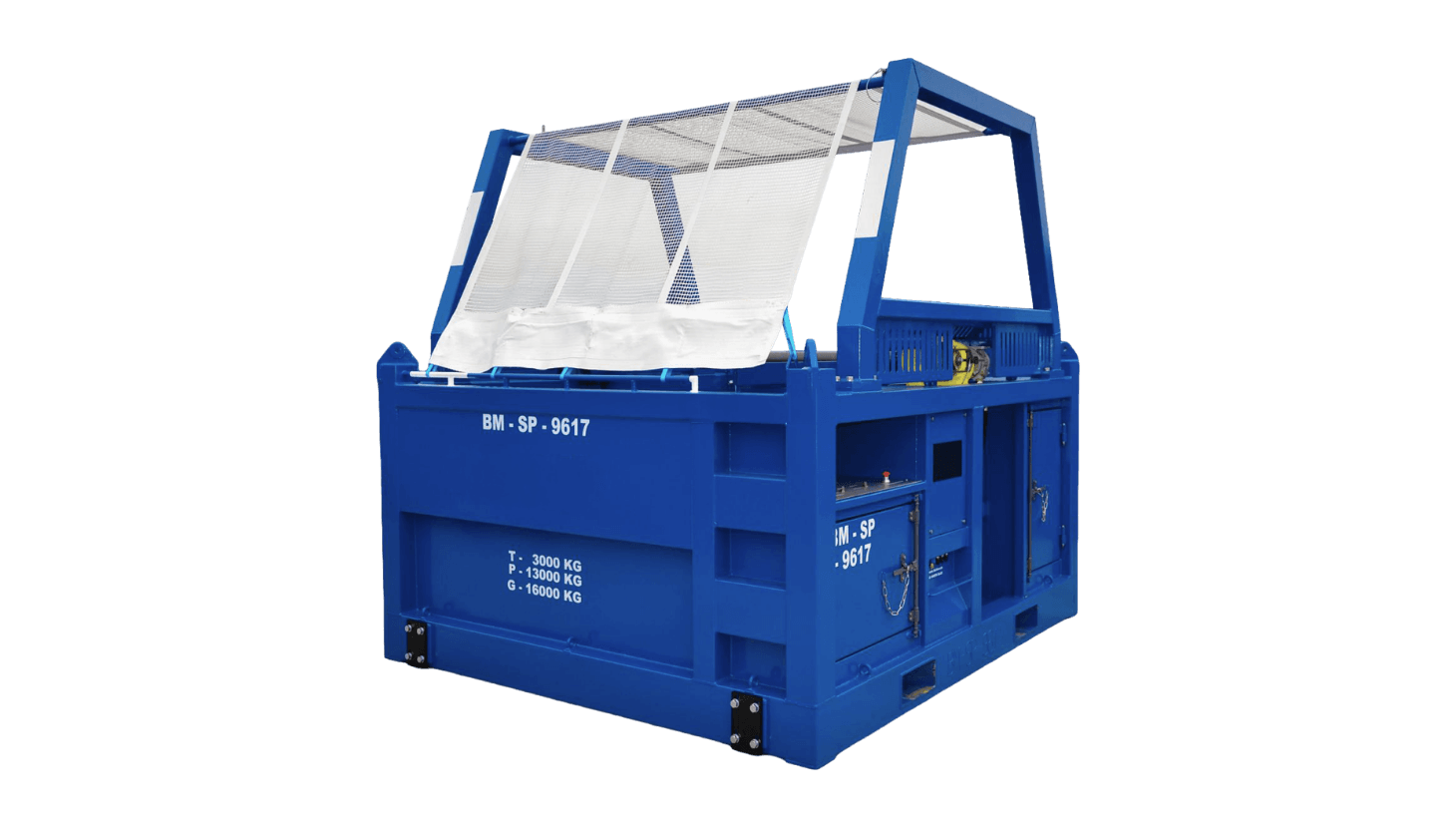

Type: 96" Spooling unit - 13t (02-9600-13T)	External dimensions (LxWxH) (mm) x x	Drum diameter (in) 96"	Drum width (in) 65"	Drum shaft (in) 4"	Tare weight 3,000	SWL 13,000	Max gross weight 16,000

E & OE - All dimensions and weights are accurate at the time of creation. Please check exact specifications of units when ordering.

OEG's BlueManta fleet certification

Looking for certification documentation for our Well completions (BlueManta) fleet? Follow the link below to access the relevant information quickly and conveniently.

BlueManta certification search

Request a quote

For all equipment rental pricing details, related services or for questions about custom fabrication, please reach out to our team.
