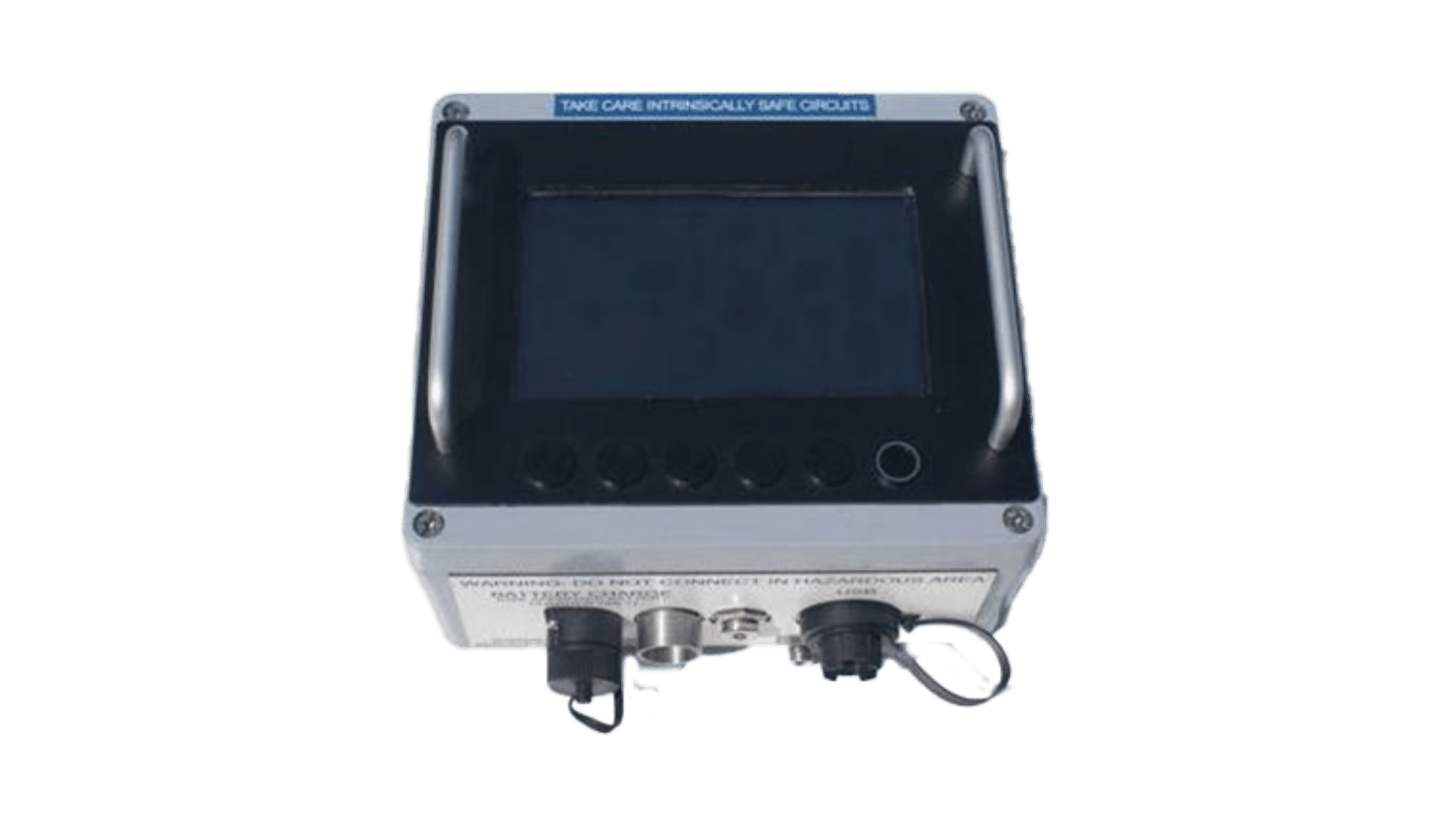

Offshore data logger
OEG’s Well completion (BlueManta) offshore data logger supports reliable digital pressure monitoring across a range of offshore applications. Built for demanding offshore environments, it delivers accurate pressure readings with simple push-button controls and five connectors for sensors, chargers and desktop or laptop connections.
Available for rental, this robust offshore data logger supports efficient testing across well completions, interventions, workovers and decommissioning. Pressure and temperature transducers record test data, which can be uploaded for analysis, with supporting software enabling test detail entry, scale adjustments, graphical reviews and report printing.
Key Features
Key Features
- Real time pressure and temperature recording
- Withstands harsh environments
- 7” LED display
- High accuracy and resolution
- 4 Analogue channel inputs
- 40 hour battery life
- Comes with Peli carry case
Specifications
| Hardware specification | |
|---|---|
| Model | BM-EZI021E |
| Display size | 7" LED TFT |
| Screen resolution | 800 × 480 px |
| Brightness | 280 cd/m² |
| Viewing angle | 60° |
| Backlight type | LED |
| Data Acquisition Electronic Interface | |
|---|---|
| Input Channels | 4 x 4-20mA |
| Sample Rate | 1 – 60 seconds |
| Resolution | 16 bit Sigma/Delta |
| Harsh Environment Pressure Transducer | |
|---|---|
| Rating | Zone II Hazardous Area |
| Pressure Range | 20,000 PSI |
| Pressure Resolution | 0.5 PSI |
| Pressure Accuracy | +/- 0.15% FS |
| Pressure Connection | 9/16” Female UNF High Pressure |
| Computer Hardware | |
|---|---|
| CPU | 520 MHz |
| RAM | 64 Mb |
| SD Card | 2 Gb |
| Ports | 1 x USB Device |
| Operating System | Windows CE 5.0 |
| Enclosure | |
|---|---|
| Type | Diecast aluminium |
| Seal Rating | IP 65 |
| Operating Temperature | 0 to 50 °C |
| Harsh Environment Temperature Transducer | |
|---|---|
| Rating | Zone II Hazardous Area |
| Temperature Range | -50 to +75 °C |
| Temperature Resolution | 0.005 °C |
OEG's BlueManta fleet certification
Looking for certification documentation for our Well completions (BlueManta) fleet? Follow the link below to access the relevant information quickly and conveniently.
Request a quote
For all equipment rental pricing details, related services or for questions about custom fabrication, please reach out to our team.
